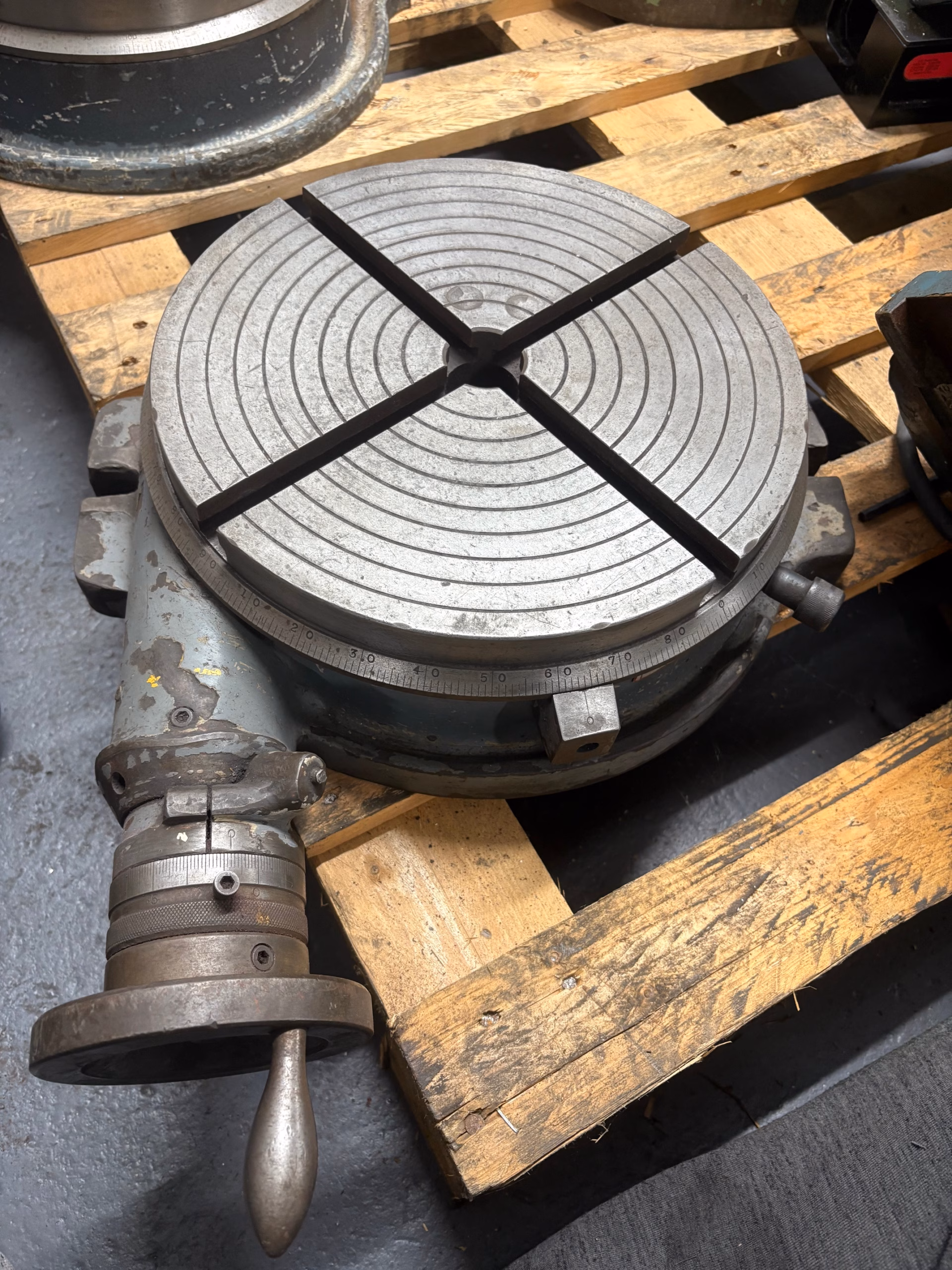

Apex 12″ (300 mm) Rotary Milling Table

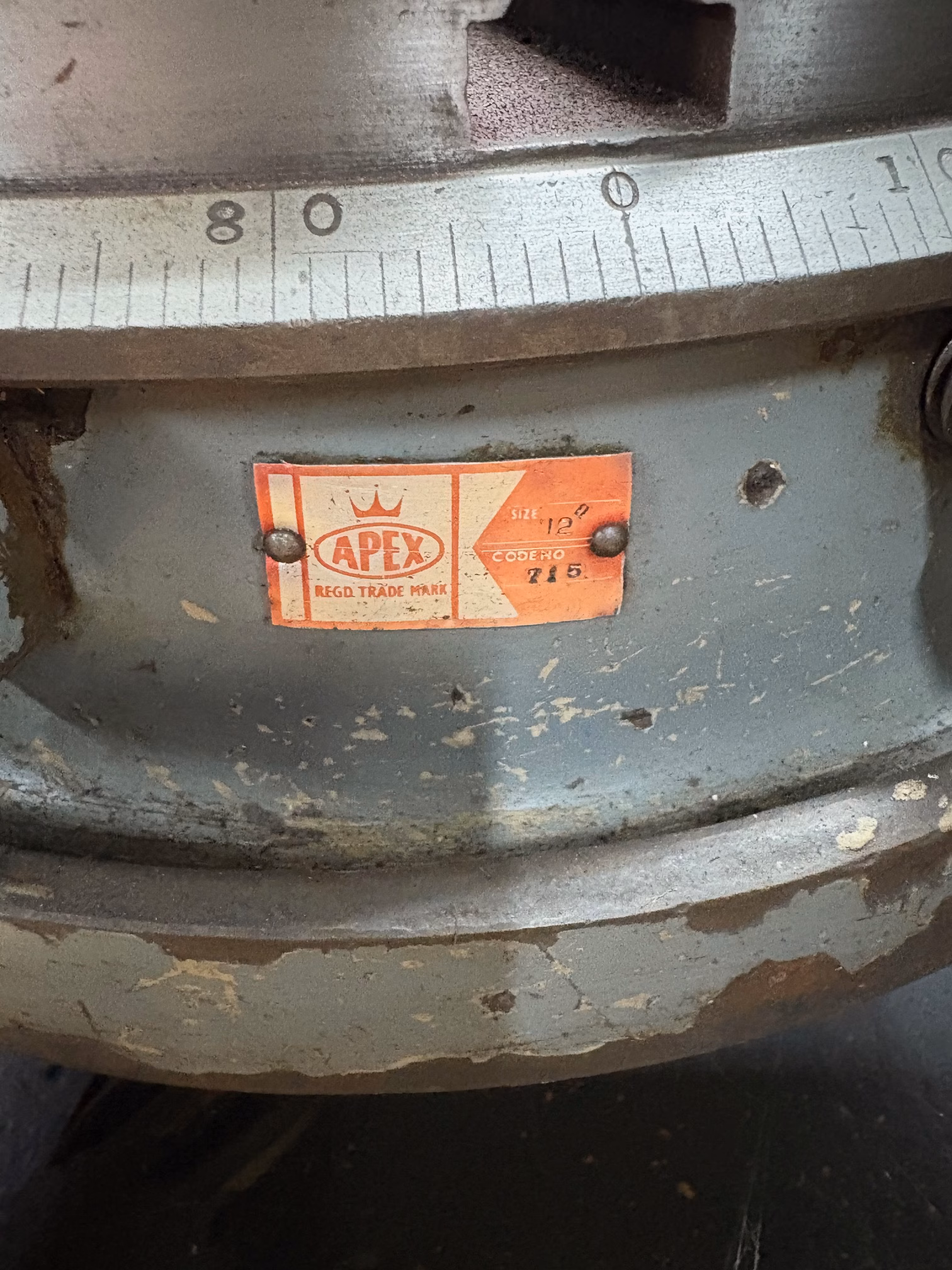

This Apex 12‑inch rotary table (model 715‑300) is a precision indexing and positioning tool built for demanding machining applications. Whether you’re milling bolts on a flange, drilling circular patterns, or performing multi-axis machining, this table provides solid performance and accuracy.

Key Features

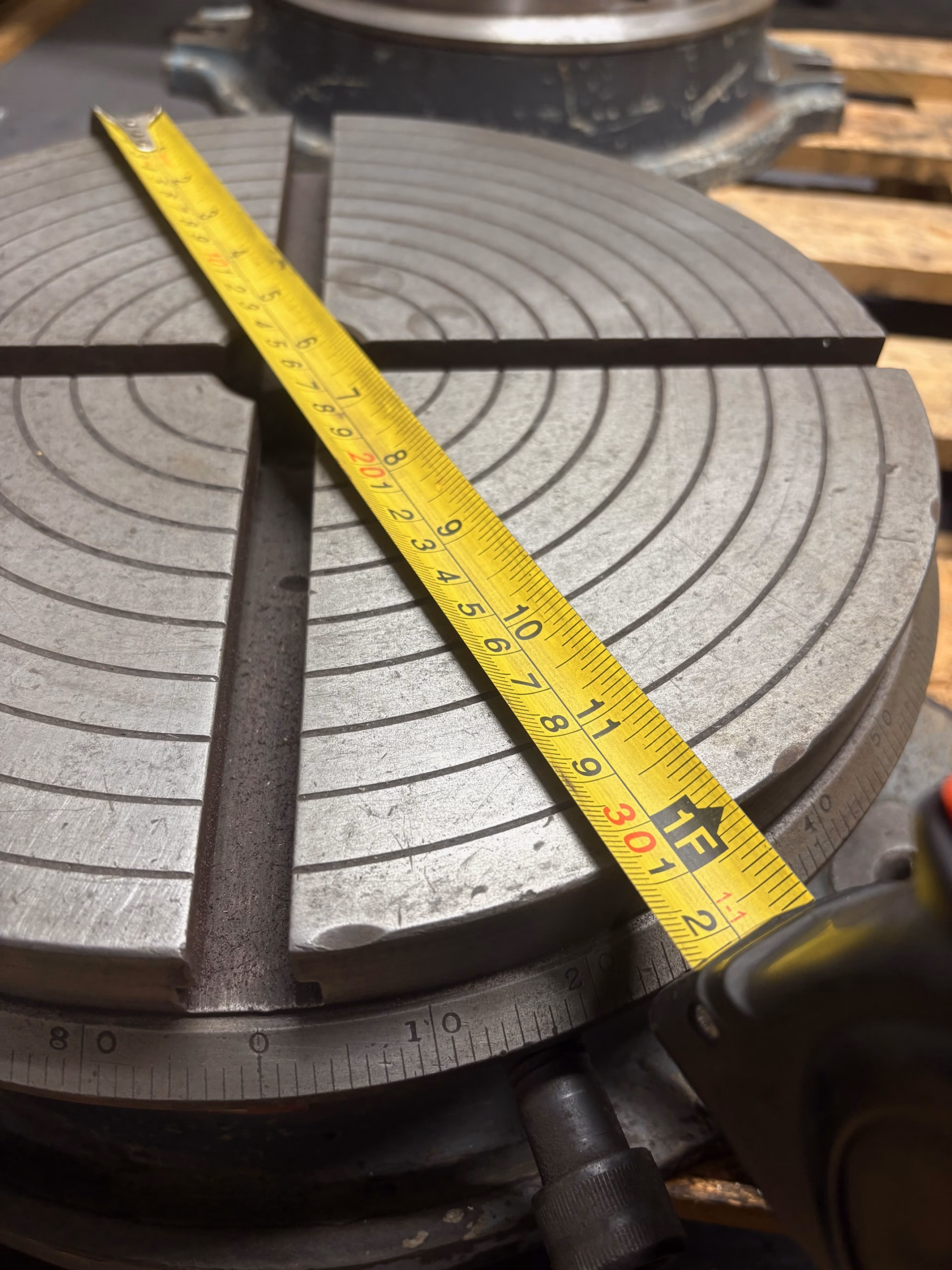

• 300 mm Diameter Table: Large face-plate gives plenty of room for clamping big components or fixturing.

• Worm‑Drive Mechanism: Uses a high-precision worm and wheel system for smooth, controlled rotation.

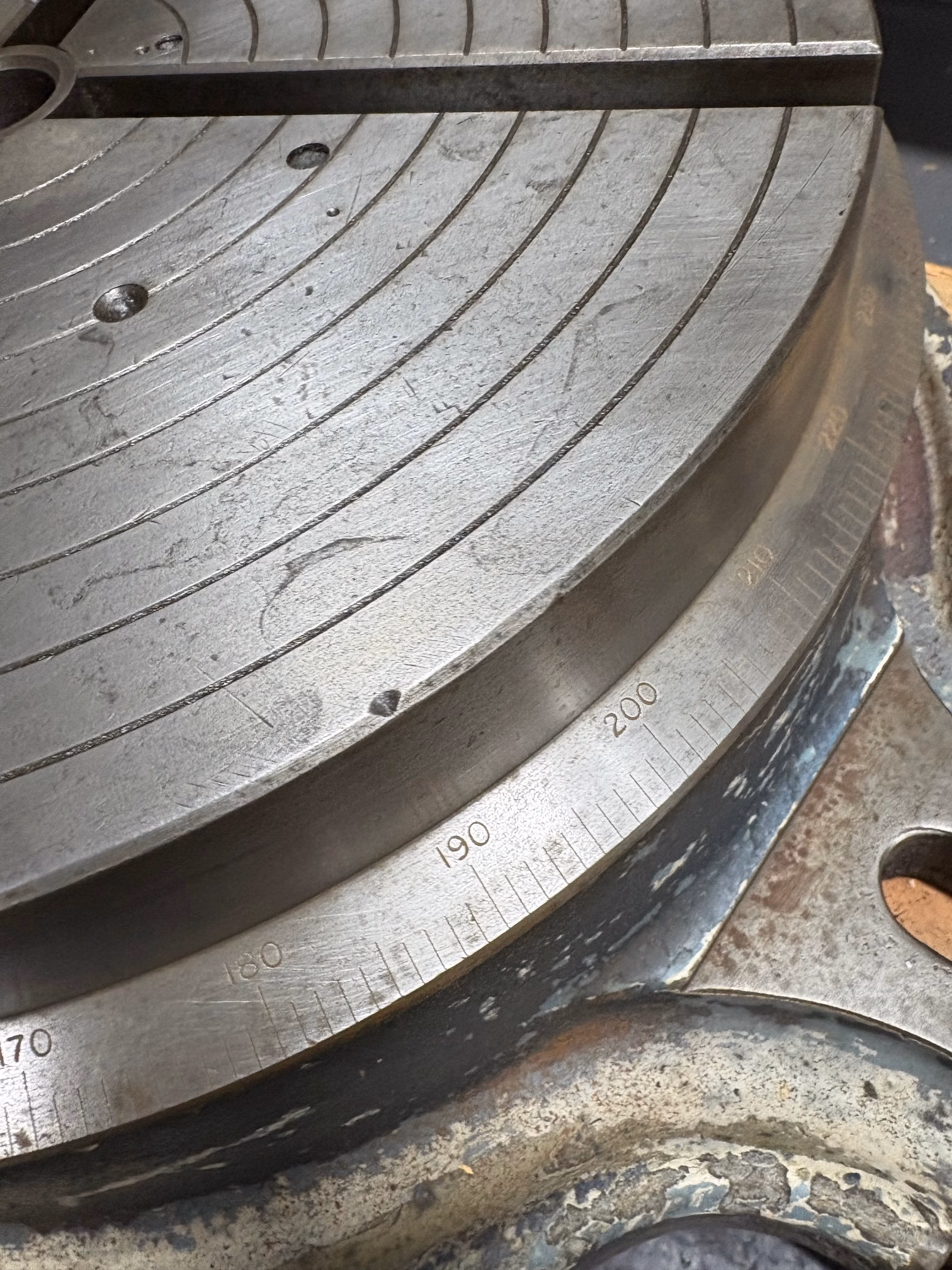

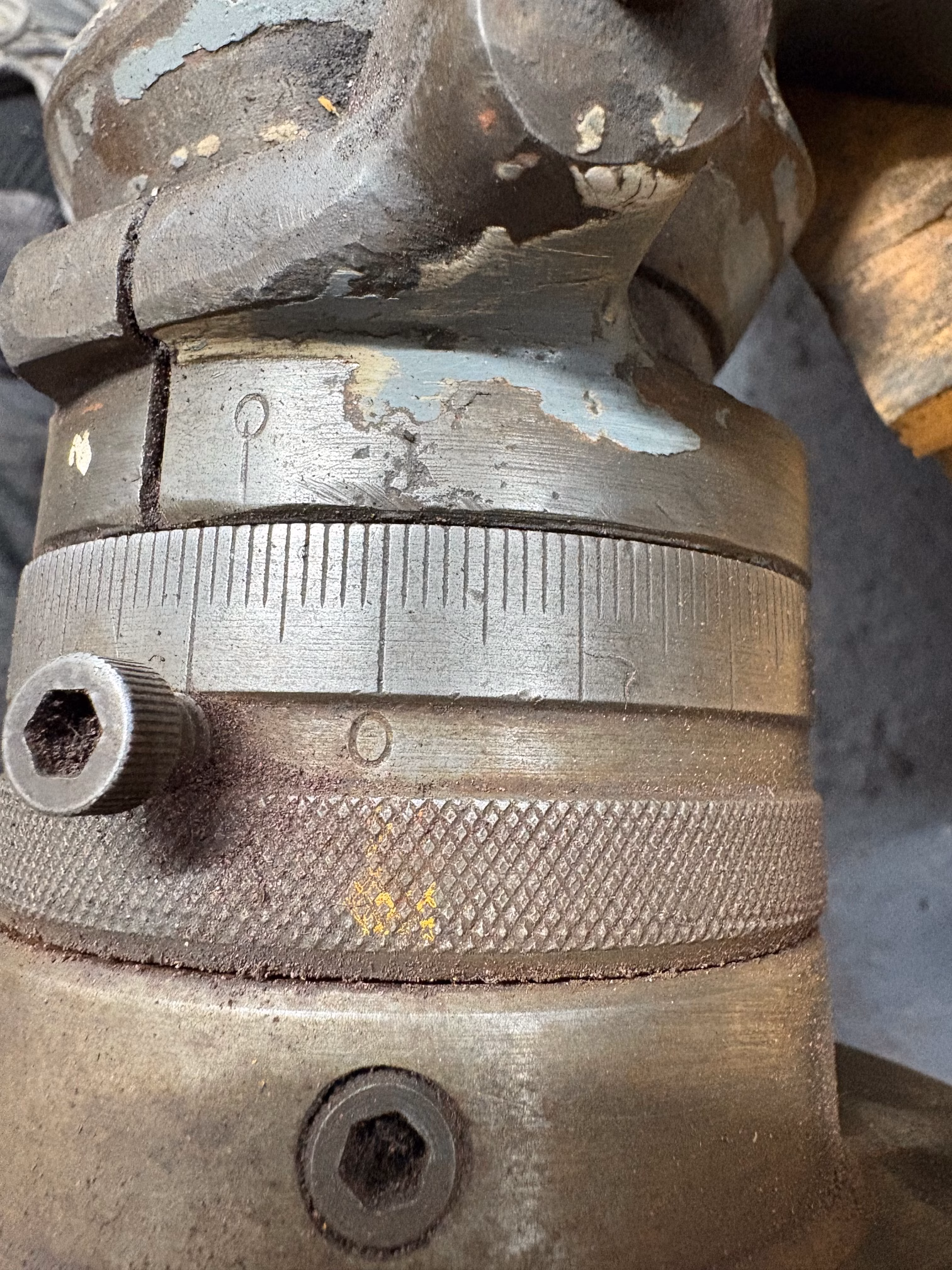

• High Accuracy: For the 12″ size, the hand‑wheel is calibrated to 1 minute of arc.

• Rigorous Inspection Tolerances:

  • Table flatness: within 0.01 mm per 100 mm

  • Runout / wobble through 360°: within 0.030 mm

  • Parallelism of supporting surfaces: 0.01 mm per 100 mm

• Centre Bore: The central bush has a 3 MT (Morse Taper) bore, allowing for spigots or centres.

• Locking Mechanism: Strong lock to fix the table position securely once you’ve dialled in the angle.

• Durable Construction: Made from stress-relieved close-grain cast iron for stiffness and vibration resistance.

• Finish: Hammer-tone mid-grey appearance, giving durability and resistance to workshop damage.

Why Choose This Apex Rotary Table?

• Versatility: Suitable for circular cutting, spot-facing, boring, and angle work, in both horizontal and vertical orientations.

• Precision: Excellent tolerance control makes it a solid choice for both production and toolroom use.

• Easy to Use: The calibrated handwheel is user-friendly and allows quick, repeatable positioning.

• Robustness: Built to last — the cast iron base and quality drive system will stand up to heavy use.
