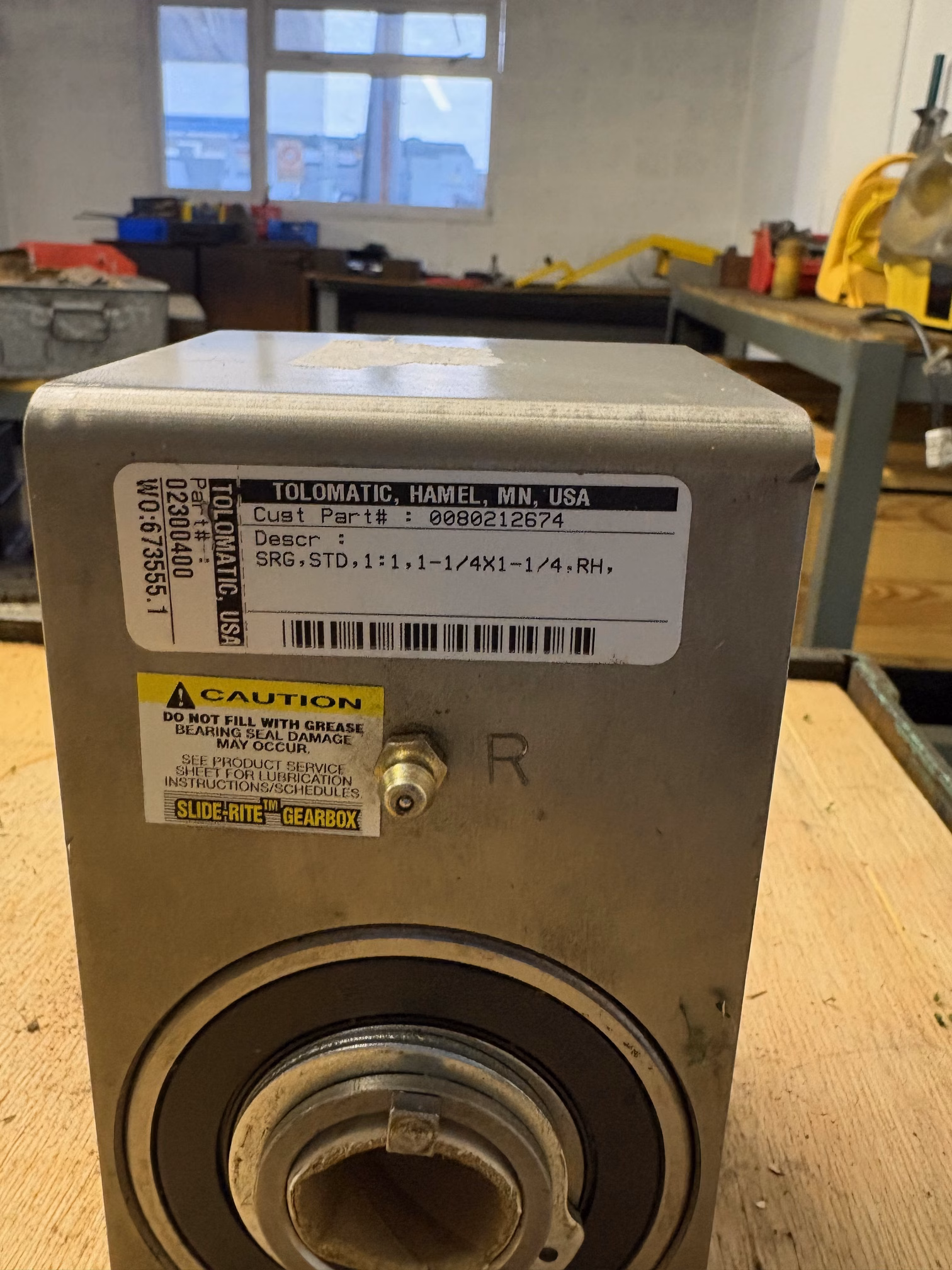

Tolomatic 02300400 Right Angle Gearbox

Overview

The Tolomatic 02300400 is a high-performance industrial right-angle gearbox designed to efficiently transfer power through 90-degree angles. Part of the Slide-Rite® Standard 1:1 series, this gearbox is engineered for applications requiring robust torque handling and compact design.

Key Specifications

• Model: 02300400

• Gear Ratio: 1:1 (Direct drive)

• Maximum Input Torque: 2,480 in-lbs (280.2 Nm)

• Maximum Input Speed: 1,200 RPM

• Mounting Type: Flat base

• Housing Material: Aluminum

• Shaft Sizes: 1-1/4″ x 1-1/4″

• Rotation: Right-hand

• Bearings: Ball bearings

• Gearing: Two 45° helical gears

Features

• High Torque Capacity: Handles up to 2,480 in-lbs (280.2 Nm) of torque, suitable for demanding applications.

• Compact Design: The flat base and aluminum housing provide a space-saving solution without compromising strength.

• Durable Construction: Ball bearings and helical gears ensure smooth operation and longevity.

• Versatile Mounting: Easily integrates into various setups with its flat base mounting configuration.

• Leak-Proof: Pre-lubricated and sealed design reduces maintenance needs and prevents contamination.

Applications

• Automation Systems: Ideal for conveyors, robotics, and other automated machinery requiring precise power transmission.

• Material Handling: Suitable for systems that need to redirect power at right angles without significant loss.

• Industrial Equipment: Can be used in various machinery where space constraints and high torque are considerations.

Summary

The Tolomatic 02300400 Right Angle Gearbox offers a robust and compact solution for transferring power at 90-degree angles. With its high torque capacity, durable construction, and versatile mounting options, it is well-suited for a wide range of industrial applications.
